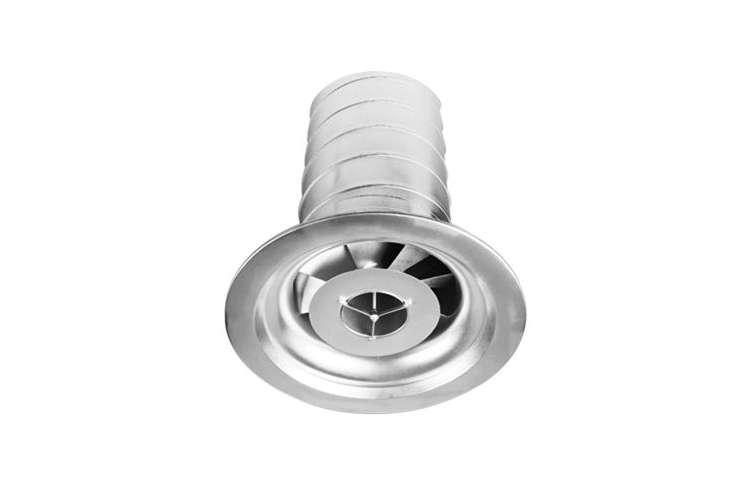

VERIABLE TWIST OUTLET WITH CORE TUBE DD-VK

For installation flush with ceiling or downstanding in high halls, particularly suitable for large thermal load fluctuations.

FEATURES

  • Adjustable discharge direction from horizontal to vertical, manually or with servomotor
  • Radial jet dispersion
  • Shorter heating-up period with vertical discharge direction
  • Connection to spiral-seam duct or connection box
  • Available with curved intake to meet high acoustic requirements

DATA

Volume Flow Rate Range: 125 – 3 050 l/s [450 – 11 000 m³/h]
Nominal Sizes: DN 315, DN 400, DN 600 and DN 710
Discharge Height: 3m – 15m
